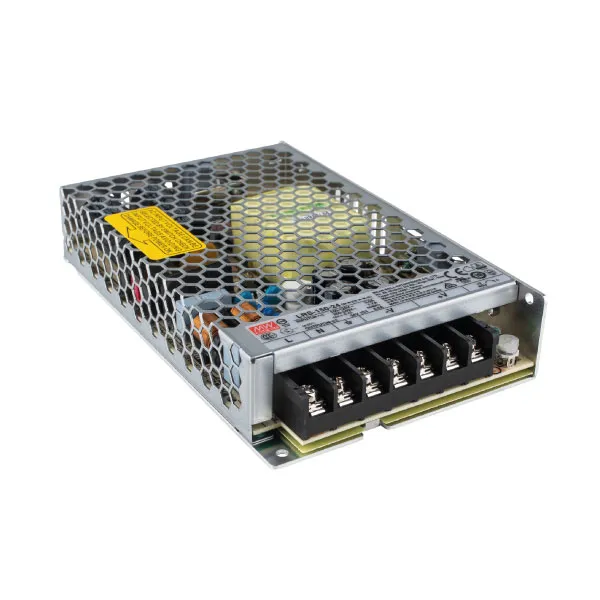

MEANWELL® LRS power supplies - 150-24

Category: Power Supplies Status: In stock
MEANWELL® LRS power supplies - 150-24 image 1
In stock

The MEAN WELL LRS-150 series is a highly reliable and cost-effective single-output enclosed power supply. Designed for a wide range of industrial and automation applications, the LRS-150 offers excellent performance, high efficiency, and a compact design, making it an ideal choice for space-constrained installations. With various output voltage options and comprehensive protection features, the LRS-150 ensures stable and safe power delivery for your critical systems.

Product Description

  • check_circle Ultra compact & 1U low profile for easy installation
  • check_circle Very low no laod power consumption ~ ❮.75W
  • check_circle 300V AC input surge protection
  • check_circle Most economical model | Non - PFC
  • check_circle High Reliability | High Efficiency
  • check_circle Cooling by Free Air Convection
  • check_circle LED Power-On Indicator

Technical Specifications

Brand
Meanwell
AC Input Voltage
230V AC
Rated Power
150W (156W)
Voltage
24V DC
Output
6.5A
EMC Emission
Compliance to EN55032 Class B, EN61000-3-2,-3
Overload Protection
105% ~ 150% of rated output power
Overvoltage Protection
115% ~ 135% of rated output voltage, shut down o/p
Short Circuit Protection
Hiccup mode, recovers automatically after fault removal
Waterproof Rating
IP20 (Indoor Use)
Working Temperature
-20 ~ +70°C (refer to derating curve)
Material
Steel
Dimensions (L x W x H)
159x97x30
