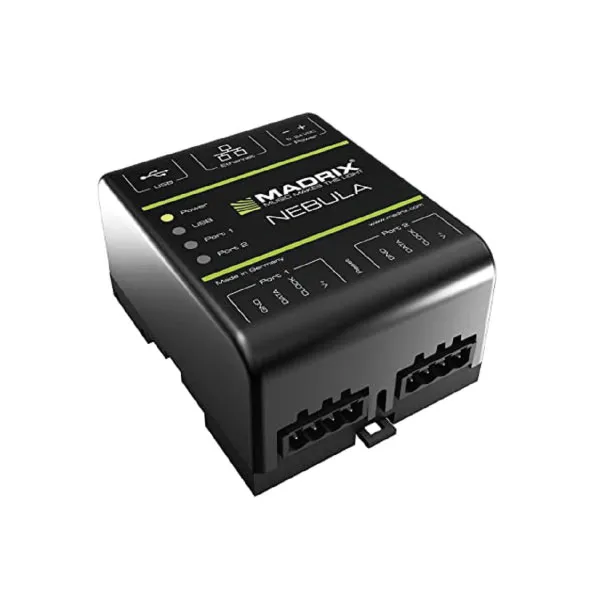

Madrix® Nebula LED DMX Pixel Controller

Category: DMX Controllers Status: Order on demand
Madrix® Nebula LED DMX Pixel Controller image 1
1 / 2
Order on demand

The MADRIX NEBULA is your gateway to breathtaking LED pixel installations. This advanced SPI decoder connects directly to your LEDs, delivering high-quality signals over Ethernet or USB for seamless, vibrant visuals.

Key Features

  • hub
    Addressable LED
  • verified
    Made in Germany
  • lan
    Ethernet Enabled
  • manage_accounts
    Easy to Setup

Product Description

  • check_circle Upto pixel perfect control of LED lights
  • check_circle Ethernet network or USB data communication
  • check_circle Quality output of 8 universes
  • check_circle License supports lifetime upgrades
  • check_circle Developed & made in Germany
  • check_circle Compatible with wide range of LED digital lights
  • check_circle produces image quality display

Technical Specifications

Light Source
LED
Data Output
8 x 512 Channels SPI TTL
Maximum Output/Port
680 : RGB LEDs, 512 : RGBW LEDs, 2048 : 1-Channel LEDs
Ports
2 x Ports(4-Pin)
Ethernet Switch
1024 Unicast MAC Addresses
Ethernet
2 x RJ45, Auto MDI-X, Daisy-Chain Support, 10/100 Mbit/S
Network Protocols
Art-Net (1,2,3,4, incl. ArtSync) Streaming ACN (sACN / ANSI E1.31)
USB
1 x Port USB 2.0 Type-B, Female Socket
Weight
110g
Dimension (mm)
90 x 70 x 46
Installation
35mm DIN-rails | Wall Mount
Waterproof Rating
IP20 (Indoor Use)
Certificates
CE, EAC, FCC, RoHS
